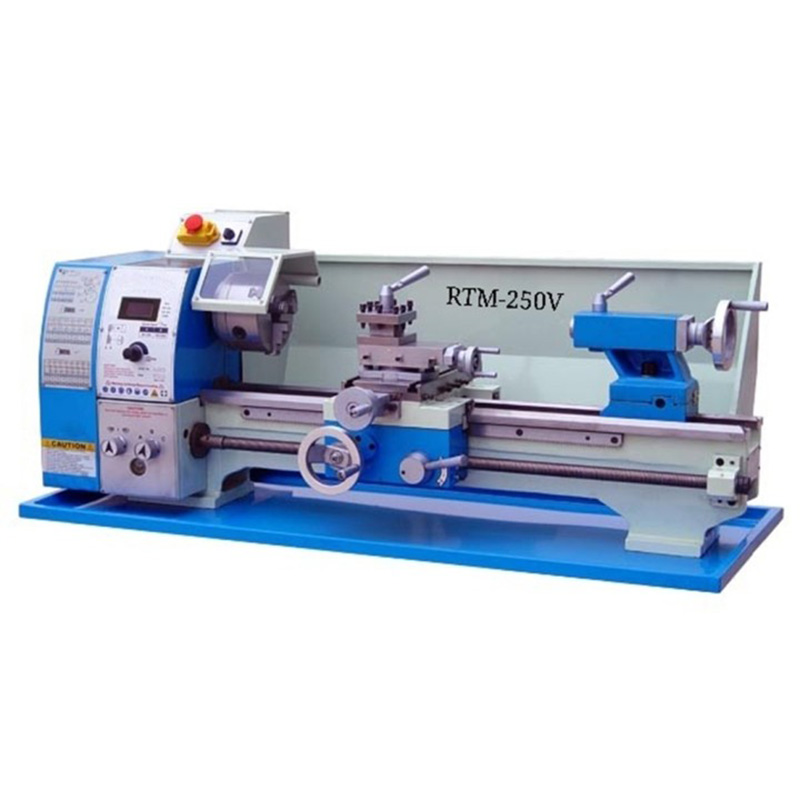

Manual lathe with variable speed RTM-180mm/210mm/250mm

Cheap Automatic Manual Metal Engine Lathe RML-400/500
Mini bench lathe machine with 20mm spindle bore for metalworking

RTM-180mm/210mm/250mm

  • Operation very easy
  • Guaranteed concentricity precision of the main spindle less than 0.009 mm
  • Concentricity precision – lathe chuck smaller than 0.05 mm
  • Easy operating gear box has various speeds and thread cutting function
  • High precision and hardened spindle
  • Precision-manufactured, taper roller bearings in P5 quality
  • Induction-hardened and ground prismatic bed made from cast iron
  • Safety magnetic and lock key European-standard switch

Deliver WorldWide

Categories: , Tag:
  • Description

Description

Specifications D180V D210V D250V
Swing over bed 180mm 210mm 250mm
Swing over cross slide 110mm 110mm
Distance between centers 300mm 400mm 550/750mm
Width of bed 100mm 100mm
Hole through spindle 21mm 21mm 26mm
Taper in spindle nose MT3 MT3 MT4
Number of spindle speeds Variable Variable
Rang of spindle speeds 50-2500rpm 50-2500rpm 50-2500rpm/125-2000rpm
Number of metric threads 10 10
Range of metric threads 0.5-3mm 0.5-3mm 0.2-4mm
Number of imperial threads 8 8
Range of imperial threads 8-44T.P.I 8-44T.P.I 8-56TPI
Range of longitudinal feed 0.1-0.20mm 0.1-0.20mm
Tool post type 4-Way 4-Way
Maximum compoud slide travel 55mm 55mm
Maximum carriage slide travel 75mm 75mm
Maximum carriage travel 195mm 276mm
Tailstock spindle travel 60mm 60mm
Taper in tailstock spindle MT2 MT2 MT2
Main motor 450(600)W/230V/1PH/50HZ 450(600)W/230V/1PH/50HZ 750W
Weight 60kgs 70kgs 125kg/135kg
Height 370mm 370mm
Width 390mm 390mm
Length 740mm 840mm
Dimension 800X480X450mm 900X480X450mm 1220X560X560mm/1400X560X560mm

Standard accessories:
3-Jaw chuck
Chuck guard
Change gears set
Splash guard
Oil tray
Tool box and tools

Related Products

  •
    Read more
    Quick View

    Ck6156 Cnc Lathe Machine 1000mm Cnc Lathe 2 Axis Fanuc Precision Metal Turning CNC Lathe Machine Horizontal Flat Bed

    CK6156 series CNC lathe is a universal machine tool with economical, safe and durable performance. The functional structure adopts modern design theory and ergonomic design, which is easy to operate, reliable and pleasant.
    This series of machine tools is suitable for the needs of the defense industry, aerospace, petrochemical, automotive, railway, ship and other fields. It can realize the inner and outer surfaces of the shaft and disc, the conical surface, the circular arc surface, various common thread, boring and reaming, and can also realize non-circular curve processing.

    Read more
    Quick View
  •
    Read more
    Quick View

    CK6432 automatic CNC lathe machine

    Automatic lubrication system
    Turning the cooling system.
    Lighting system
    Standard packing list
    Tool box
    380v 50hz 3phases
    World Wide Delivery

    Read more
    Quick View
  •
    Read more
    Quick View

    New CK61100D CNC Lathe Turning Machine Single Spindle Horizontal Design Medium Duty Featuring Motor Bearing Engine PLC

    1.High-accuracy machining capacity: The Large Spindle Bore Pipe Thread Lathe Oil Country Lathe boasts exceptional precision, capable of producing high-quality finished products in various industries such as manufacturing plants and retail.

    2.Heavy-duty capabilities: This horizontal lathe machine is designed for heavy-duty operations, with a 1250mm maximum swing diameter and an impressive 12,500kg weight, making it ideal for machining large workpieces.

    3.Advanced technology: Equipped with a spindle speed range of 6.3-315 rpm and a 360mm spindle bore, this CNC lathe is designed with the latest technology to ensure efficient and precise operations.

    4.Comprehensive after-sales support: This product offers both online support and a 1-year warranty, along with a 1-year warranty on core components such as bearings, pumps, gears, motors, and gearboxes. Video outgoing-inspection and a machinery test report are also provided for added confidence in the product’s quality and performance.

    Read more
    Quick View
  •
    Read more
    Quick View

    Cheap Automatic Manual Metal Engine Lathe RML-400/500

    Features:

    Heavy duty gap engine manual lathe machine:

    Super voice frequency heated bedways Hardened and grounded gears in the headstock With 2 precision D degree taper roller bearings on the spindle Integrated deluxe cast iron floor stand Tolerance test certificate, test flow chart included
    WorldWild Delivery
    Read more
    Quick View
  •
    Read more
    Quick View

    Combine Lathe/Drill/Mill Multi-function for Metalworking RMP-250/290

    Combined Lathe/Mill/Drill Machine RPV 250/280/290 Features:
    1) High precision spindle.
    2) More popular, widely useful variable speed lathe.
    3) Induction harden precision bedway.
    4) Powerful, maintenance-free motor.
    5) Gear head, low noise.

    WorldWide Delivery

    Read more
    Quick View
  •
    Read more
    Quick View

    CNC210 Mini CNC Lathe

    CNC120 CNC Lathe with below features:

    1. The machine can process precisely internal or external diameter,face,taper and threading with high efficiency.

    2. DC brushless spindle motor
    3. Small occuping,lower energy consumption,easy operation,suitable for small processing
    4. High-quality spindle by high-precision grinding and support by Angular contact bearing
    5. Induction harden bed-way,Bed saddle with plastic sticker can improve the accuracy and service life of machine
    6. Macro arithmetic operation can be performed,the processing of complex parts,fully functional,economical and practical with a textbook for teaching.

    Read more
    Quick View
  •
    Read more
    Quick View

    China low price Cnc turning lathe CNC 46D CE Certified with High Working Efficiency Single Spindle Horizontal Milling and Turning

    Turret machine CNC-46D

    Machine tool structural characteristics

    ▶ The overall 45° inclined bed design can maintain long-term high precision and excellent surface finish. The large carriage and tool holder are tilted, making machine operation and pin arrangement easy.

    ▶ High-precision, high-speed, high-rigidity ball screw and linear guide X-axis and Z-axis are equipped with ball screws and linear guides imported from Taiwan. The super-large span between the tracks allows the displacement speed to reach 30M/min. The two-axis rotation is directly connected by a servo motor and a precision ball screw through an elastic coupling.

    Read more
    Quick View
  •
    Read more
    Quick View

    CNC lathe CK6132 mini lathe machine metal for metalworking

    CNC Lathe Features
    A high strength,widening the carriage,suitable for heavy cutting.
    Four position eletric turret
    Frequency conversion stepless speed regulation
    Standard configuration : manual chuck

    WorldWide Delivery

    Read more
    Quick View
  •
    Read more
    Quick View

    Horizontal metal bench lathe machine with CE RTM-300

    Main features:

    1.Precision ground and supersonic frequency hardened bed ways.
    2.The spindle is supported with precision roller bearing.
    3.Strong power motor suited for heavy duty cutting.
    4.Headstock gears are made of high quality steel ground and hardened.
    5.Easy operating gear box has various feed and cutting function.
    6.Worldwild Delivery.
    Read more
    Quick View
  •
    Read more
    Quick View

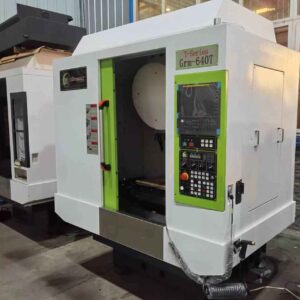

    RT-640T high accuracy Mitsubishi controller spindle customized automatic cnc lathe machine 3 axis 4 axis 5 axis
