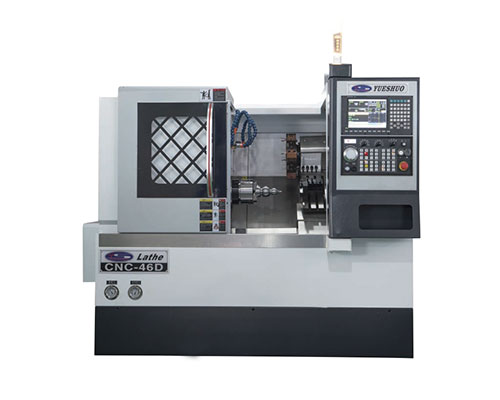

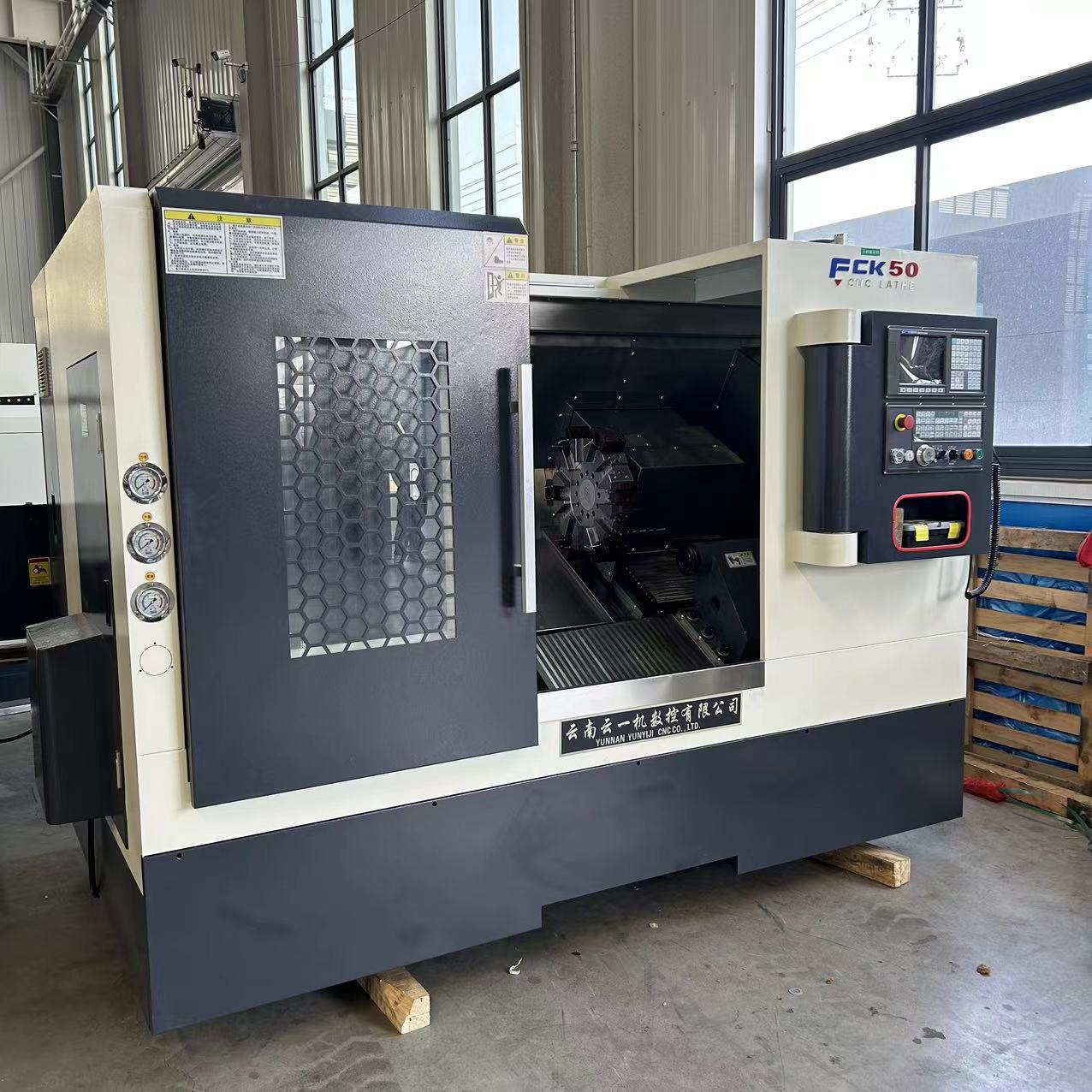

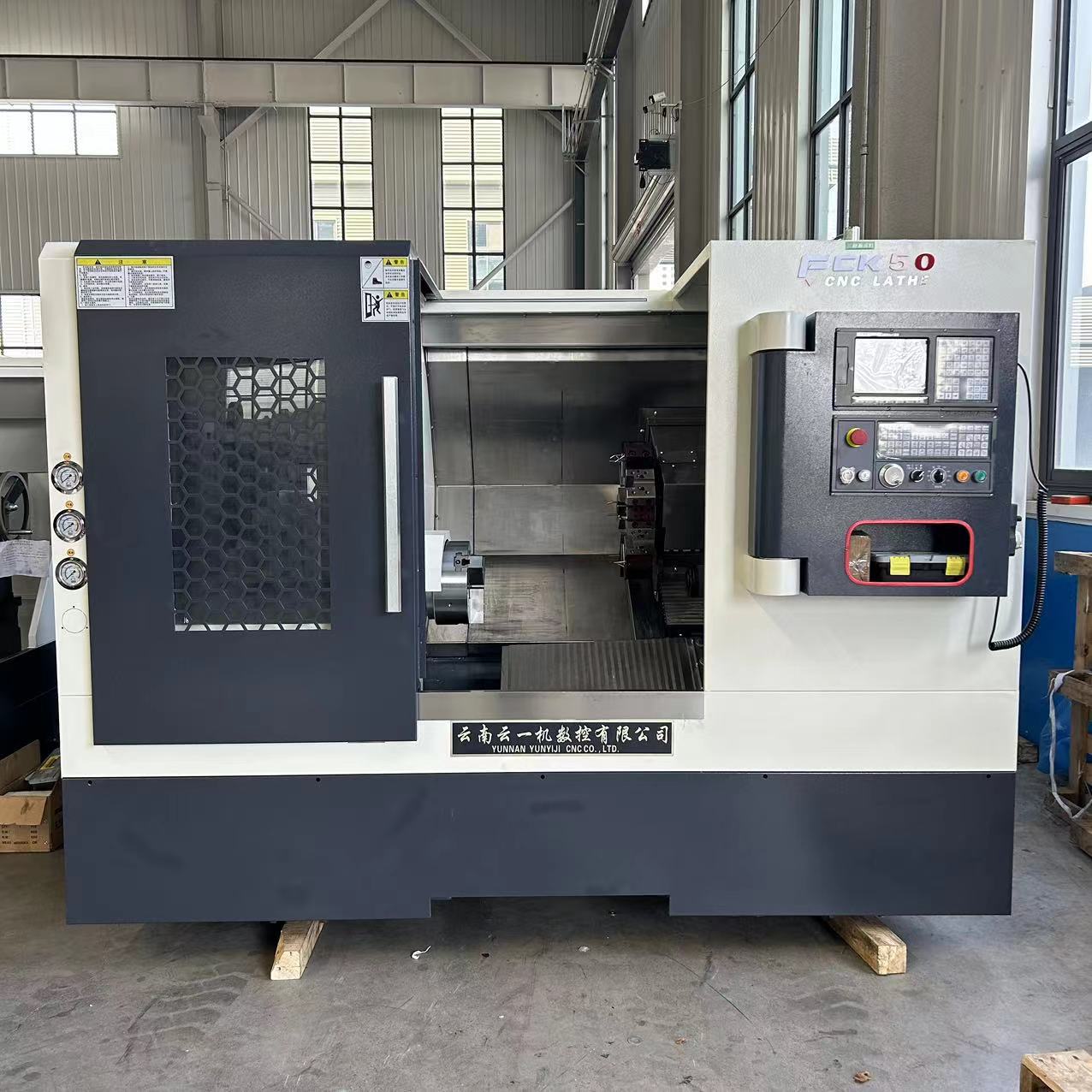

Turret machine CNC-46D

Machine tool structural characteristics

▶ The overall 45° inclined bed design can maintain long-term high precision and excellent surface finish. The large carriage and tool holder are tilted, making machine operation and pin arrangement easy.

▶ High-precision, high-speed, high-rigidity ball screw and linear guide X-axis and Z-axis are equipped with ball screws and linear guides imported from Taiwan. The super-large span between the tracks allows the displacement speed to reach 30M/min. The two-axis rotation is directly connected by a servo motor and a precision ball screw through an elastic coupling.

Product Specification

Name	單位Unit	CNC-46D
Spindle
Spindle nose		ANSIA2-5
Spindle through-hole-diameter	mm	φ46
Cylindrical chuck		CL-42A5
Center of spindle to ground level	mm	880
Spindle tie rod size	mm	540
Next generation control system
Spindle motor power	kw	5.5/7.5
Spindle base speed	rpm	50
Maximum spindle speed (servo)	rpm	6000
Spindle outputs torque	N-m	37.5/50
X axis servomotor power	kw	1.7带抱閘
Z axis servo motor power	kw	1.7
Processing range
Maximum lathe diame ter	mm	φ450
Maximum length of machined workpiece	mm	260
Maximum machined workpiece diameter	mm	φ360
Maximum diameter of rod through hole	mm	φ46
Axial travel
X-axis travel (radius)	mm	420
Z-axis travel	mm	280
X/Z axis fast-moving speed	m/min	24/24
Mechanical precision
X/Z axis repeat accuracy	mm	±0.003恒温
X/Z axis positioning accuracy	mm	±0.003恒温
Chip out
Cutting tank capacity	liter	56L
Cutting water pressure	bar	1.85
Turret
Turret drive	SET	伺服驅動
Number of the cutting tool	隻	8+2
Quartet cutter holder specifications	mm	□20
Boring tool block specifications	mm	φ25
Adjacent tool change time	sec	0.25
Overall dimensions
Length xwidthx heig ht	mm	198016801650
Weight	kg	約2900
Covers an area	m²	3.2
